RPF Raspberry Pi Zero 2 W

From TechInfoDepot
Jump to navigationJump to search
multiple revisions of this device, use caution
bgn (N150)
Radio module

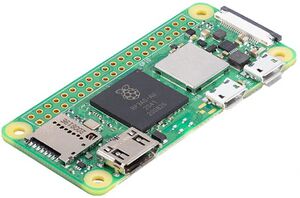

RPF Raspberry Pi Zero 2 W.jpg
Homepage
3rd Party Firmware
dd-wrt
Status Unknown
OpenWrt
Status Unknown
Tomato any flavor
Status Unknown
Gargoyle
Status Unknown
Platform
BrandModelRev
RPF Raspberry Pi Zero 2 W
FCC ID
IC ID
Type
single-board computer
CPU1
Broadcom BCM2710A1
CPU1 Type
ARM Cortex-53
CPU1 Speed
1.0 GHz ( 4 cores )
Flash1 Chip
Brand? Model?
Flash1 Size
0 MiB0 B <br />0 Kib <br />0 KiB <br />0 Mib <br />0 GiB <br />
RAM1 Size
512 MiB536,870,912 B <br />4,194,304 Kib <br />524,288 KiB <br />4,096 Mib <br />0.5 GiB <br />
RAM1 Chip
Micron Model?

802dot11 OUI: E4:5F:01 (2 E, 2 W)

Stock FW OS
Linux 5.10.92-v8+ Raspberry Pi OS (Debian 11.2)
Expansion IF types
USB 2.0, Micro SD Card slot
USB ports
1
SD/MMC Slots
1
USB Hub Compatible
Untested
Connector type
USB Female Micro-B
Serial Port (UART)
yes, via GPIO header, (115200 8N1)
Flags:
Bluetooth 4.2 (BLE), Micro SD Card slot, Mini HDMI output, CSI, GPIO

Additional chips
Dual PWM Step Down DC-DC Converter;Diodes Inc.;PAM2306;;1;
2.7MHz 3A Step-Down Converter w/ I2C Interface;Richtek;RT8088A;;1;
500mA 5.5V LDO Linear Regulator;Richtek;RT9081A;;1;

Other

Default IP address: acquired via DHCP
the IP acquired via DHCP is used by 189 additional devices
of which 1 are RPF devices
Default login user: pi
Default login password: raspberry
pi:raspberry credentials used by 1 additional devices
of which 1 are RPF devices

3rd Party Firmware Support
RetroPie, LibreELEC, Ubuntu Core, TLXOS
Retail
FCC approval date 28 October 2021
(Est.) release date October 2021
(Est.) initial retail price (in USD): $15
ASIN B09LH5SBPS Flag of the United States.svg
Country of manuf UK
Radio 1
Chip1
Broadcom Model?
Wireless interface OUI
E4:5F:01
Antenna Connector Type
none specified
MIMO status
1x1:1
Wireless Standard
IEEE 802.11b/g/n
802.11n
up to 150 Mbps
802.11g
up to 54 Mbps
802.11b
up to 11 Mbps
WiFi Operating Frequency
2.4 GHz
 CPU1 brandRadio1 chip1 brandRadio1 chip2 brand
RPF Raspberry Pi ZeroBroadcom
RPF Raspberry Pi Zero 2 WBroadcomBroadcom
RPF Raspberry Pi Zero WBroadcomBroadcom

For a list of all currently documented Broadcom chipsets with specifications, see Broadcom.

For a list of all currently documented RPF device with specifications, see RPF.

150 Mbps - 1SS 2.4GHz 802.11n (40MHz chan.) = N150 class

Overview

Raspberry Pi Zero 2 © Raspberry Pi 2021 is silkscreened on the board.

Specifications

Quad-Core ARM Cortex-53
  • GPU: VideoCore IV, 3D-core
  • Memory: 512MB (SDRAM) DDR2L = in SIP package w/ CPU
  • Storage: TF card (max.128GB)/MMC card
  • WiFi: Broadcom 1T1R 802.11n, BT 4.2 BLE
  • USB: 1x micro USB 2.0
  • GPIO: 1x 40-pin port
  • Power Source: 5V/2.5A via micro USB

Links of Interest

Raspberry Pi on Wikipedia
